Can an E-Bike Pull a Trailer? Weight, Range, and Ariel Rider Setup Guide
Updated June 2026. Yes, an e-bike can pull a trailer when the bike, hitch, axle, brakes, tires, route, speed, and load are all matched for towing. For Ariel Rider owners, the key is choosing the correct Trailer Bundle variant, staying within the trailer payload rating, planning for reduced range, and checking local rules before riding on public roads, trails, or paths.
Specification, legal, and safety note: Trailer Bundle product and support references in this guide were checked on June 24, 2026, including listed payload, tire, hitch, speed, compatibility, and range-reduction information. Specifications, compatibility, availability, accessory fit, product instructions, and local access rules can change. Confirm the current product page, current manual or support guidance, and current local rules before purchasing, loading, towing, or riding. This guide is a planning aid, not a safety determination, legal permission, or replacement for rider judgment, equipment inspection, professional service, pet-care judgment, or Ariel Rider support guidance.
Quick Takeaways
- An e-bike trailer is best for cargo, groceries, camping gear, beach gear, or a dog that fits the trailer comfortably.
- As checked on June 24, 2026, the Ariel Rider Trailer Bundle product page listed a 150 lb max trailer payload, 20x4 inch all-terrain fat tires, and an anti-tip swivel mount. Confirm the current page before towing.
- Pick the exact trailer variant for your bike: current options include X-Class 60V, Kepler Dual Battery 52V, Kepler 52v Pre 2026, X-Class 52V, and Grizzly 52V.
- Towing changes braking distance, acceleration, turning, tire load, and battery range, so ride slower and inspect the hitch before every trip.
- Do not use a trailer to work around passenger rules. Cargo and pet towing are different from carrying a person, and local access rules can still apply.
What Counts as a Good E-Bike Trailer Setup?
Answer first: a good setup keeps the load low, uses a hitch designed for the bike, leaves room for the rear axle and motor hardware, tracks straight, and gives the rider enough braking and range margin for the route.
The important question is not only whether the motor has enough power. A towing setup also asks whether the trailer fits the axle, whether the load is secured, whether the tires and brakes are ready, whether the route is reasonable, and whether the rider can stop smoothly with the extra mass behind the bike.
For Ariel Rider, start with the Trailer Bundle, then select the variant that matches the bike. If you have an older generation, a modified bike, a custom rack, or a private-property/off-road configuration, confirm hitch clearance with Ariel Rider support before ordering or towing.
The Tow-Readiness Score
Answer first: if your score is 0-2, the trip may be lower-risk but still requires inspection and judgment; if it is 3-4, shorten the route and reduce the load; if it is 5 or more, solve the risk points before towing.
Give yourself one point for each item that applies to the ride you are planning:
- The trailer load is near the trailer's maximum payload.
- Your route has long hills, steep descents, gravel, sand, potholes, or repeated stop-and-go traffic.
- You need to ride in rain, darkness, heat, poor visibility, or heavy wind.
- You are carrying a dog or fragile cargo that needs extra smoothness and ventilation.
- You are unsure whether the hitch clears your axle, rack, fender, frame, or motor cable routing.
- You need close to your bike's normal maximum range to finish the trip.
This score is a planning aid only, not a safety determination. The rider is responsible for deciding whether to tow, inspecting the bike and trailer, following current product instructions and local rules, and accepting the consequences of loading or riding. A low score does not replace a pre-ride inspection. It simply tells you the trip is closer to a normal utility ride than a high-load towing trip. A high score means you should reduce weight, choose a flatter route, slow down, split the errand into two rides, or contact support before riding.
Ariel Rider Trailer Bundle Facts to Check
Answer first: use the product page as the final source before ordering, because trailer variants, pricing, stock, and compatibility can change.
| Item | Checked detail as of June 24, 2026 | Why it matters |
|---|---|---|
| Payload | Listed as 150 lb max trailer payload; confirm the current rating before loading or towing. | Payload affects braking, turning, range, tire load, and hitch stress. |
| Tires | Listed as 20x4 inch all-terrain fat tires; confirm the current product page before ordering. | Larger fat tires help the trailer track over rougher surfaces, but they do not remove the need to slow down. |
| Hitch | Listed with an anti-tip swivel mount and axle hitch adapter; confirm current fit and instructions before towing. | The hitch must let the bike lean while the trailer stays stable. |
| Included setup | Listed with an alloy cargo frame, removable pet/cargo cabin, and universal axle hitch adapter; confirm current included parts before ordering. | The same bundle can be used for cargo or a pet cabin configuration when the load fits. |
| Current variant choices | Listed variants included Grizzly 52V, Kepler 52v Pre 2026, X-Class 52V, X-Class 60V, and Kepler Dual Battery 52V; confirm the exact current variant for your bike generation. | Selecting the wrong variant can create fit problems. |
| Speed guidance | Listed guidance recommended a max trailer speed of 20 mph; confirm current instructions and ride slower when conditions require. | Extra weight behind the bike changes stopping and cornering. |
How Much Weight Can You Tow?
Answer first: stay within the trailer's rated payload and remember that trailer cargo is separate from on-bike payload. The safer question is not "What is the maximum?" but "What load can I stop, turn, and control on this route?"
The payload figure listed on the Trailer Bundle page as of June 24, 2026 does not mean every load near that rating is equally easy to control. One compact, low, secured load is very different from tall, shifting cargo. A dog is also different from boxes because comfort, ventilation, temperature, entry height, and movement matter.
Before every towing ride, ask four questions:
- Is the load below the trailer payload rating?
- Is the load low, centered, and secured so it cannot slide into a turn?
- Does the trailer have enough clearance from the bike, rack, fender, brakes, cable routing, and rear axle hardware?
- Have I tested braking and handling in a safe, low-risk area before attempting the steepest descent or busiest part of the route?
If the answer to any of these is no, reduce the load or change the route before riding.
How Much Range Do You Lose When Towing?
Answer first: plan for less range than a normal ride. As checked on June 24, 2026, Ariel Rider's Trailer Bundle page said towing a full 150 lb load can reduce range by about 15-25% depending on terrain and hills. Treat that as an estimate only, not a guarantee.
Use this simple planning method:
| Trip type | Planning multiplier | Estimated normal-range budget if the route usually uses 20 miles |
|---|---|---|
| Light load, flat route | Plan as if you have about 85% of normal range | Budget about 24 miles of normal range for the same trip; estimate only. |
| Full or near-full trailer load | Plan as if you have about 75% of normal range | Budget about 27 miles of normal range for the same trip; estimate only. |
| Hills, wind, rough ground, frequent stops | Add extra buffer beyond the 75% plan | Shorten the route or recharge earlier |
For a better estimate, start with the Ariel Rider e-bike range calculator, then apply a towing buffer. Do not plan a trailer ride that depends on arriving with the battery nearly empty.
Which Ariel Rider Bikes Make the Most Sense?
Answer first: X-Class 60V and Kepler Dual Battery are the cleanest current article bridges because they have current trailer variants and strong product interest. Confirm your exact model, generation, and variant before ordering.
X-Class 60V
The X-Class 60V is a strong fit for riders who want a compact, high-torque setup for errands, gear, and short utility trips. The trailer variant selector includes X-Class 60V, and the current product path is one of Ariel Rider's highest-traffic landing pages. Keep the trailer within rating, slow down when loaded, and confirm any rack or fender clearance before towing.
Kepler Dual Battery
The Kepler Dual Battery is the utility-minded fit when range and load planning matter. Its dual-battery positioning pairs naturally with grocery, dog, beach, and camping uses. The trailer variant selector includes Kepler Dual Battery 52V. Do not assume older Kepler accessories fit the current dual-battery model without checking the current product page or support.
Grizzly 52V and Grizzly 72V PPB
The Trailer Bundle variant selector includes Grizzly 52V. The current Grizzly 72V PPB is a private-property/off-road performance model, and this article does not present it as a public-road e-bike towing setup. If you own a Grizzly generation or private-property model, confirm compatibility and intended use with Ariel Rider support before towing.
Cargo Trailer or Dog Trailer?
Answer first: cargo cares most about weight, shape, and tie-downs; dogs add comfort, ventilation, temperature, noise, training, and behavior.
For cargo, keep the heaviest items low and centered. Avoid stacking weight high above the trailer bed. Secure the load so it cannot slide backward during acceleration or forward during braking.

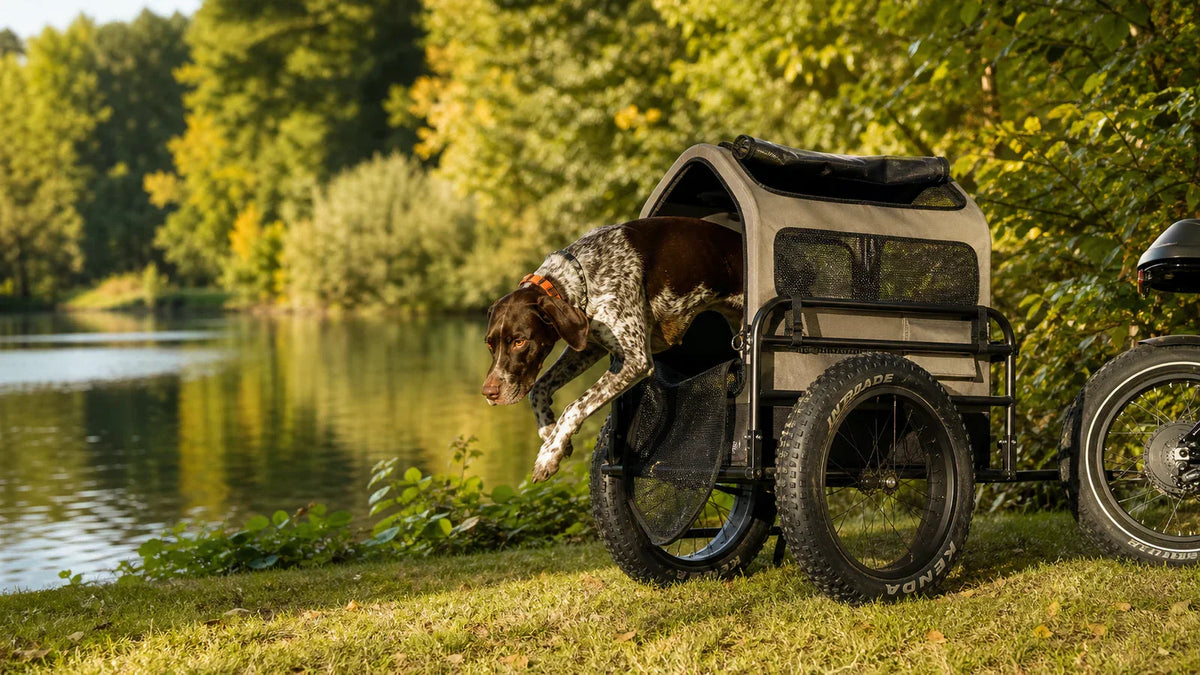

For a dog, fit is not just weight. The dog needs room to sit or lie naturally, ventilation, a secure internal leash point, and a calm introduction before any longer ride. Start with the bike off, then walk the bike with the loaded trailer, then do a short slow ride before building distance. Skip rides in heat, heavy traffic, or rough routes if your dog is uncomfortable. You are responsible for your animal's safety and comfort; ask your veterinarian about trailer riding if your dog is older, anxious, heat-sensitive, injured, or has a medical condition.
Pre-Ride Trailer Checklist
Answer first: check the hitch, axle, tires, cargo, lights, brakes, and route before every trailer ride.
- Hitch is fully seated and locked according to the trailer instructions.
- Rear axle area, motor cable routing, fender, rack, brake parts, and trailer arm have safe clearance.
- Trailer tires are inflated and free of cuts, bulges, embedded debris, or sidewall damage.
- Bike tires and brakes feel normal before adding the trailer.
- Load is under rating, centered, low, and secured.
- Pet cabin is latched, ventilated, and comfortable before riding.
- Lights and reflectors are visible from behind and from the side.
- Route avoids high-speed roads, steep descents, tight crowded paths, and places where trailers are not allowed.
When Not to Tow
Answer first: do not tow when the hitch fit is uncertain, the load is too heavy, braking feels weak, tires are damaged, the route is too steep or crowded, or local rules do not allow it.
Also avoid towing if the bike has unresolved electrical, brake, wheel, frame, rack, or axle issues. A small mechanical problem becomes more serious when extra weight is pushing from behind the bike.
Do not use a cargo or dog trailer for a human passenger unless the product is specifically designed and legally allowed for that use. Ariel Rider's passenger and law guidance should be treated separately from trailer cargo guidance.
What to Do Next
If your bike and route pass the checklist, open the Trailer Bundle, select the correct model variant, and confirm current price, availability, and shipping timing before checkout. If you are unsure about model generation, axle clearance, rack interference, local rules, or a private-property/off-road configuration, contact Ariel Rider support first.
For trip planning, estimate range with the range calculator, then add a towing buffer. For model-specific instructions, use the manuals page. For access rules, start with the e-bike laws page and verify local rules where you ride.
FAQs
Can an e-bike pull a dog trailer?
Yes, if the dog fits the trailer comfortably, the combined load stays within the current trailer rating, the hitch fits correctly, and the route is slow and smooth enough. Start with short training rides before longer trips, and ask your veterinarian if your dog has age, heat, anxiety, injury, or medical concerns.
Does towing a trailer reduce e-bike range?
Yes. As checked on June 24, 2026, the Ariel Rider Trailer Bundle page said towing a full 150 lb load can reduce range by about 15-25% depending on terrain and hills. Use a conservative range buffer instead of planning to use the full battery, and confirm current guidance before relying on the number.
Can I tow at normal e-bike speed?
No. Towing changes stopping and cornering. As checked on June 24, 2026, the Ariel Rider Trailer Bundle page recommended a max trailer speed of 20 mph, and many routes call for slower riding than that. Confirm current instructions before towing.
Can I put a person in an e-bike trailer?
Do not use a cargo or dog trailer for a person unless the trailer is specifically designed and legally allowed for human passengers. Passenger rules, age rules, helmet rules, and path access can vary by location.
Which Ariel Rider trailer variant should I choose?
Choose the exact variant for your bike generation. The current Trailer Bundle selector includes Grizzly 52V, Kepler 52v Pre 2026, X-Class 52V, X-Class 60V, and Kepler Dual Battery 52V. If your model is not clearly listed, contact support before ordering.
Sources and Method
This guide was built from Ariel Rider Shopify Admin product data, the public Trailer Bundle page checked on June 24, 2026, current X-Class 60V and Kepler Dual Battery pages, Ariel Rider's range calculator, e-bike laws page, shipping page, and public trailer-category research. Product details and rules can change. Confirm current specifications, compatibility, instructions, and local rules before ordering, loading, towing, or riding. This guide avoids universal towing guarantees because rider weight, cargo weight, route, wind, temperature, terrain, battery charge, tire pressure, local rules, and model generation all change the answer.
