Wattage numbers like 750W and 1000W look big on spec sheets, but real e-bike performance comes from how the system is wired: voltage architecture and how it behaves under load.
Two bikes can both claim 1000W and feel completely different in the real world. One overheats and fades on long hills. The other keeps pulling. The difference is usually not the motor sticker – it’s whether the bike is running a 48V, 52V, or 60V system and how much current it needs to hit that power.

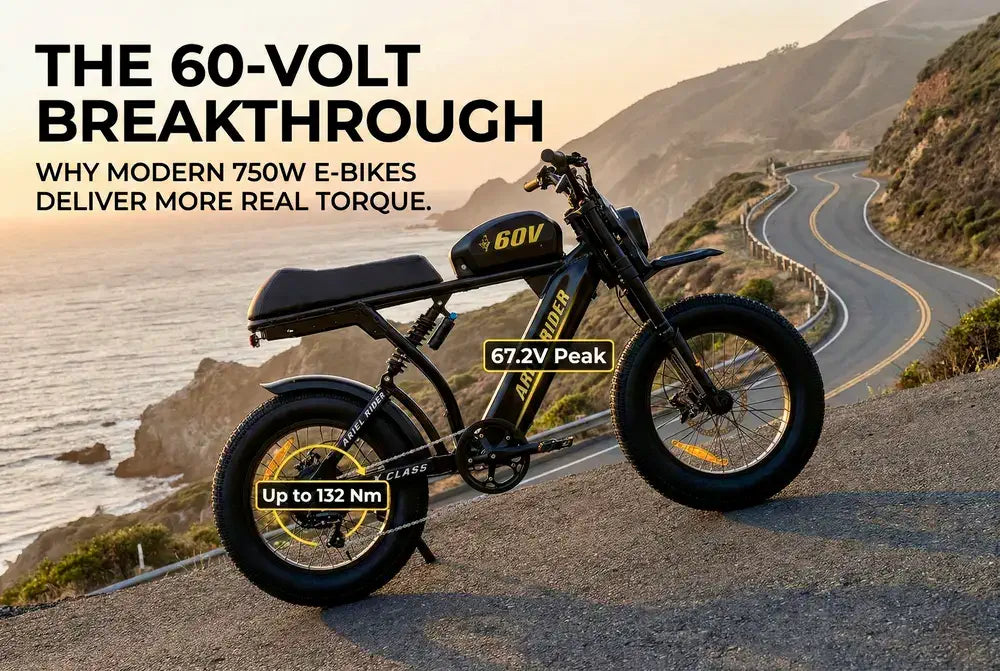

This guide uses the Ariel Rider X-Class 60V as a reference point to explain what actually changes when you move from 48V to 52V to 60V: torque, hill performance, heat, range, and safety.
Voltage, Current & Power: The Hose Analogy
Think of electricity like water flowing through a hose:
- Voltage (V) = Water pressure (how hard the water is pushed).
- Current / Amps (A) = How wide the hose is (how much water flows).
- Power / Watts (W) = How much water actually hits the wheel (pressure × flow).
To get more power (Watts), you can either:
- Push more current through the system (bigger “hose”) – but that creates more heat, or
- Increase voltage (higher “pressure”) – which is more efficient at the same power level.
The 1,500W Example: Why 60V Runs Cooler
To make roughly 1,500W of peak power, here’s how much current each system needs:
- 48V system: ~31.25A (1,500 ÷ 48) – high current, more heat and stress.
- 52V system: ~28.8A – an improvement, but still hot on long climbs.
- 60V system: ~25A – less current for the same power, so cooler and more efficient.
That current difference is what lets a 60V system hold power longer before thermal limits kick in.
48V vs 52V vs 60V: How They Compare Under Real Load
On paper, 48V, 52V, and 60V might look close. In real riding – hills, cargo, cold weather, and city traffic – the gap is huge. Here’s a simplified comparison using typical values and the Ariel Rider X-Class 60V as a reference.
| Metric | Standard 48V | Standard 52V | Ariel Rider 60V (X-Class) |
|---|---|---|---|
| Peak Voltage (Full Charge) | ~54.6V | ~58.8V | ~67.2V |
| Voltage Sag Under Heavy Load | High (may drop into low 40s) | Moderate | Low (often stays above 60V) |
| Typical Torque Range | ~60–80 Nm | ~85–95 Nm | Up to ~110–132 Nm* |
| Thermal Efficiency at 1,500W Peak | Low – runs hot quickly | Medium – better but still stressed | High – lower current, cooler components |
| Feel on Long Hills | Strong start, then fades and slows | Decent on moderate hills | Pulls hard and holds speed longer |
*Exact torque depends on motor winding, controller tuning, rider weight, and terrain. Values shown are typical ranges, not lab-certified limits.
Why Motor RPM Matters More Than Marketing Wattage
Spec sheets rarely list motor RPM or Kv (RPM per volt), but those are what determine how strong a bike feels when you’re actually climbing. Voltage directly affects RPM.
In simplified terms: Motor RPM ≈ Kv × Voltage.
Higher voltage = higher RPM ceiling = more usable torque at the wheel before the system “runs out of breath.”
When voltage sags too low on a climb, the motor drops out of its efficient RPM band and torque falls off sharply. That’s why a 48V bike can feel great in a flat parking lot but sluggish halfway up a long hill.
- 48V: Good initial punch, but runs out of RPM and torque earlier on steep grades.
- 52V: Better mid-range, more stable on rolling terrain.
- 60V: Keeps the motor in its “power band” longer, especially for heavier riders or with cargo.
Who Actually Needs a 60V E-Bike?
Not every rider needs a 60V system. But if you recognize yourself in any of these rider types, the jump from 48V/52V to 60V will be very noticeable.
The Hill Climber
If you ride in cities like Seattle, San Francisco, Pittsburgh, or Vancouver, you’re dealing with regular 10–20% grades. Many 48V bikes start strong, then slow down, heat up, or cut power partway up the climb.
A 60V system keeps RPM and torque higher for longer, so you can crest steep hills without feeling like your bike is giving up.
The Cargo & Heavy Rider
Riders over ~220 lbs, passengers on the back, or heavy panniers and trailers all increase demand on the motor – especially at low speeds. The X-Class 60V’s torque potential (up to ~132 Nm) helps with:
- Confident starts at intersections.
- Maintaining speed with a second rider.
- Responsive acceleration even with full cargo.
The Winter Commuter
Cold temperatures reduce battery voltage and increase sag. A 48V system can feel “tired” in the 30–40°F range, with cutouts under hard acceleration.
With 60V, you have more headroom: even with some voltage drop, there’s still plenty of margin for healthy RPM and consistent power on cold-weather rides.
Best E-Bike Voltage for Your City & Terrain
Riders often search things like “Is 48V enough for Seattle hills?” or “Do I need 60V in Denver?”. Here’s a quick, terrain-based snapshot:
- Seattle, WA: 60V strongly recommended for steep neighborhoods like Capitol Hill, Queen Anne, and West Seattle, especially with cargo or passengers.
- San Francisco, CA: 60V ideal for daily riding on Nob Hill, Twin Peaks, and Pacific Heights. It helps avoid mid-hill fade and cutouts.
- Denver & Boulder, CO: At elevation, 60V helps offset voltage sag and gives more margin on long, sustained climbs.
- Los Angeles, CA: 52V is fine for flatter coastal routes; 60V shines for canyon roads, two-up riding, and off-road exploring.
- Austin, TX / Midwest Cities: 48V can work for lighter riders on flat commutes; 52V or 60V is recommended for heavier riders, trailers, or hillier outskirts.
Battery Lifespan: Why 60V Systems Often Age Better
Heat is the enemy of both electronics and lithium cells. Because 60V systems can make the same power with less current, they tend to run cooler and experience less stress over time.
- Lower current draw means less internal heating in the cells.
- Cooler controllers are less likely to hit thermal limits and throttle performance.
- Fewer high-stress events can translate into better long-term capacity retention.
In controlled testing scenarios, properly designed high-voltage packs often show better capacity retention after hundreds of charge cycles compared to lower-voltage systems delivering the same real-world power.
Controller Efficiency: The Hidden Performance Multiplier
The controller is the brain of the bike – and voltage changes how efficiently it can work. Higher voltage lets the controller deliver the same power with less current.
Why 60V Makes Controllers Happier
- Less current per watt reduces stress on MOSFETs and internal traces.
- More stable voltage gives smoother power delivery and finer modulation.
- Better RPM range allows the controller to keep the motor in its torque band without surging.
That’s why a properly tuned 60V bike like the X-Class can feel both more powerful and more refined than lower-voltage bikes with similar “wattage” numbers.
Power Requires Control: Brakes, Frame & Safety at 60V
More torque and speed also mean more kinetic energy to manage. A proper 60V bike can’t just bolt a bigger battery onto a 48V frame and call it done – the whole system has to be designed for the extra performance.
What a 60V-Ready Bike Should Include
- Hydraulic disc brakes for strong, repeatable stopping power and modulation at higher speeds.
- Reinforced frame & dropouts to handle higher torque and heavier payloads.
- Correctly rated wiring & connectors to reduce heat and avoid arcing.
- Quality tires with appropriate load and speed ratings.
The Ariel Rider X-Class 60V is engineered around these needs from the beginning – frame, brakes, electronics, and wiring are all designed to work together at higher voltage.
Class 2, Class 3 & Off-Road: How Voltage Relates to Legal Use
In the U.S., most e-bike laws focus on:
- Top assisted speed (often 20 mph for Class 2, 28 mph for Class 3).
- Throttle vs. pedal assist behavior.
- Continuous motor wattage rating (commonly 750W in many states).
Voltage itself usually isn’t directly regulated. A 60V bike can be configured to behave like a Class 2 for street use and still have extra headroom for off-road or private-property modes where that’s allowed.
How the X-Class 60V Ships
The Ariel Rider X-Class 60V ships in a street-friendly, Class-2-style configuration with:
- Throttle and pedal assist limited to around 20 mph (where allowed).
- Controls tuned for safe, predictable urban riding.
Riders are responsible for understanding and following all local regulations before making any aftermarket modifications that allow the bike to operate outside Class-2-style limits. Ariel Rider does not recommend nor support these alterations for everyone's safety.
Frequently Asked Questions: 60V vs 52V vs 48V
Range is technically determined by Watt-hours (Wh) – voltage × amp-hours (V × Ah). But in real-world use, a 60V system can often deliver more usable range than a similar-size 48V pack because:
- It draws less current for the same power, wasting less energy as heat.
- It maintains higher voltage under load, keeping the motor in its efficient RPM zone longer.
Same Wh, better efficiency under load usually means more real-world miles on a 60V system.
Yes. Heavy riders and cargo put more demand on the motor at low speeds, where torque matters most. A 60V system gives the controller more voltage to work with, helping maintain strong starting torque and acceleration even when:
- Your weight is over ~220 lbs.
- You’re riding with a passenger.
- You’re pulling a trailer or carrying heavy panniers.
Usually no – and it can be unsafe.
Going from 48V to 60V typically requires replacing multiple components:
- The battery.
- The controller (to handle higher voltage and adjust tuning).
- Often the display and wiring harness.
- Sometimes even the motor, depending on its limits.
In most cases, it’s safer and more cost-effective to buy a bike engineered as a native 60V platform, like the X-Class 60V, rather than attempting a DIY high-voltage conversion.
The legal top speed depends on configuration and local law. The Ariel Rider X-Class 60V ships in a Class-2-style configuration around 20 mph for street use where permitted.
No. Chargers must match the battery voltage exactly.
- Using a lower-voltage charger (e.g., 52V on a 60V battery) won’t fully charge the pack.
- Using a higher-voltage charger than the battery is designed for can create a serious fire hazard.
Always use the charger supplied by the manufacturer or one specifically approved for your battery voltage.
Even in flatter cities, 60V can offer:
- Stronger, more confident acceleration in traffic.
- Better performance when riding into strong headwinds.
- Improved long-term durability of the battery and controller.
Light riders with no cargo on very flat routes may be satisfied with 48V or 52V. But if you want headroom for hills, passengers, trailers, or future needs, 60V gives you more margin.
